Command Access MLRK1-FAL25 Motorized Latch Retraction Kit — For Falcon 24/25 Series Exit Devices (Field Install, UL, 3-Year Warranty)

Command Access MLRK1-FAL25 Motorized Latch Retraction Kit — For Falcon 24/25 Series Exit Devices (Field Install, UL, 3-Year Warranty)

$445.00 USD
$445.00 USD
Sale Sold out
Shipping calculated at checkout.

Upgrade Falcon 24/25 Exit Devices to Motor-Driven Latch Retraction

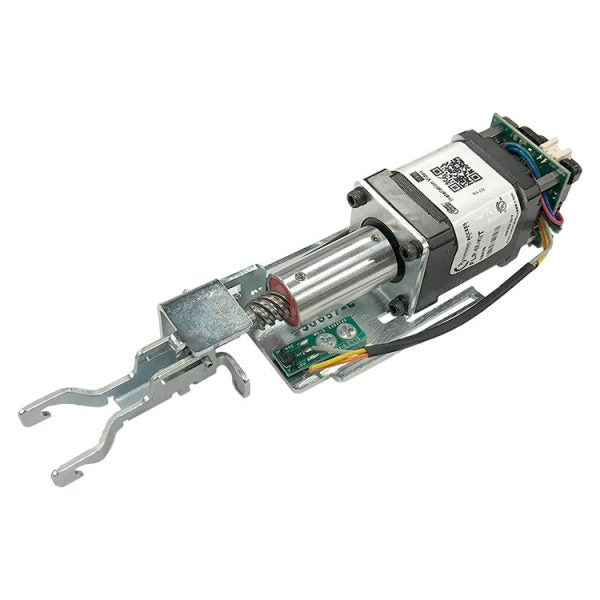

The Command Access MLRK1-FAL25 is a drop-in, field-install motorized latch retraction kit for Falcon 24/25 Series exit devices. It converts a mechanical device to an electrified, push-to-set solution with built-in REX, low current draw, and the MM4S Smart Module for diagnostics and torque control. UL Listed with a 3-year “no hassle” warranty.

Why installers choose MLRK1-FAL25

  • True drop-in field kit — no drilling or screws required in the rail.
  • Fast, quiet, smooth, and strong motor performance.
  • Push-to-Set (PTS) post-install fine adjustment (≈ 1/4").
  • Built-in Request-to-Exit (REX) switch standard on all units.
  • MM4S Smart Module with onboard diagnostics & audible feedback for power/adjustment issues.
  • Two power profiles: energy-conscious mode or High-Torque for tougher doors.
  • Electric dogging rated for continuous duty with auto re-engage if the pushpad is pulled.
  • UL Listed and backed by a 3-year warranty.

Compatibility

Works with all Falcon 24 and 25 Series exit devices.

Specifications

Voltage Range 24–28 VDC (over-voltage protection: unit shuts down > 28 VDC)
Current (Standard) Peak ≈ 900 mA; Hold ≈ 215 mA
Modes Standard (low current) or High-Torque (field switchable)
PTS Adjustment ≈ 1/4″
Built-in REX Yes (standard on all units)
Wire Run Up to 300′ with 18 AWG
Cutdown Details 36″ – cut up to 2″; 48″ – cut up to 8″
Duty Rating Electric dogging rated continuous; auto re-engage if pushpad is pulled
Listings UL Listed
Warranty 3-Year “No Hassle” Warranty

Installer Notes

  • Verify door/rail handing, cut length, and clear wire path before energizing.
  • Use a regulated 24 VDC power supply sized for inrush; set High-Torque only when needed.
  • Confirm REX wiring to the access control panel per site requirements.
  • Measure voltage at the device under load to ensure 24–28 VDC at the rail.

What’s Included

MLRK1-FAL25 motor kit with MM4S module and installation hardware/instructions for Falcon 24/25 series rails.
