Altronix SMP7 12/24VDC 6A Power Supply / Charger Board

Altronix SMP7 12/24VDC 6A Power Supply / Charger Board

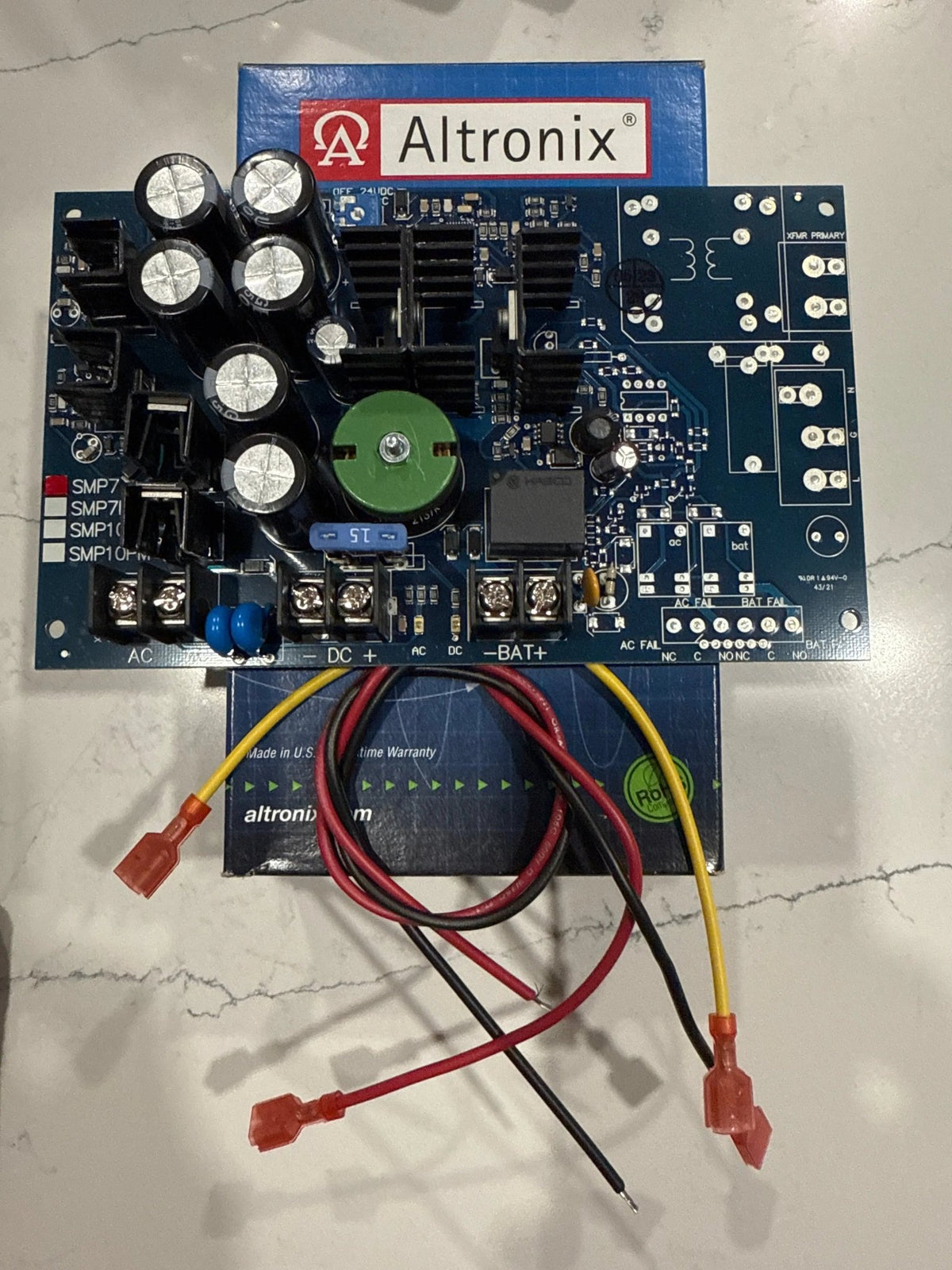

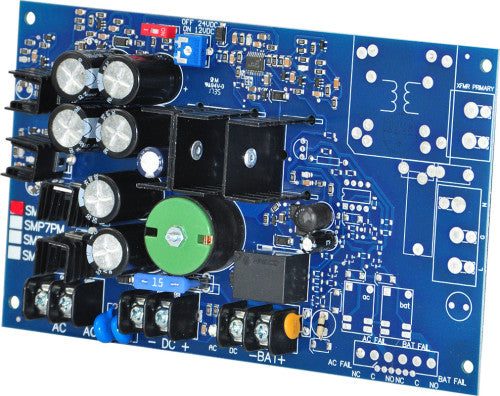

The Altronix SMP7 is a board-level power supply / charger designed for access-control, security and CCTV applications that require dependable 12VDC or 24VDC power. It converts a low-voltage AC input into a filtered, electronically regulated DC output and provides built-in standby-battery charging.

Key Features

• Selectable 12VDC or 24VDC output
• 6A continuous supply current
• 28VAC input
• Filtered and electronically regulated output
• Short-circuit and thermal overload protection
• Built-in charger for sealed lead-acid or gel batteries
• Maximum battery charge current: 0.7A
• Zero-voltage-drop transfer to standby battery
• AC input and DC output LED indicators
• Board-only configuration for integration into compatible enclosures

Access Control & Security Applications

The SMP7 is a strong fit for commercial access-control and low-voltage systems that need a dedicated 12VDC or 24VDC power source. Typical applications include access-control panels, electric strikes, electromagnetic locks, electrified door hardware, intercom equipment, relays and compatible CCTV accessories.

Important: This listing is for the SMP7 board only. Transformer, enclosure and standby batteries are not included unless separately specified. Always verify the connected equipment's operating voltage, current draw and battery requirements before installation.

Commercial Access Control in Austin, Texas

Avenger Security Services / Security Tekton installs and services commercial access-control and low-voltage systems throughout Austin, Round Rock, Georgetown, Cedar Park, Pflugerville and Central Texas. We regularly integrate Altronix power supplies with Brivo and other access-control systems, electrified door hardware, readers, intercoms and related security equipment.

Manufacturer: Altronix
Model: SMP7
Type: Power Supply / Charger Board
Input: 28VAC
Output: Selectable 12VDC / 24VDC
Maximum Output Current: 6A Continuous
Battery Charger: Sealed Lead-Acid / Gel, 0.7A Max Charge Current
Dimensions: 7.045 in. W x 4.266 in. L x 2.127 in. H
Operating Temperature: 32°F to 120°F (0°C to 49°C)
